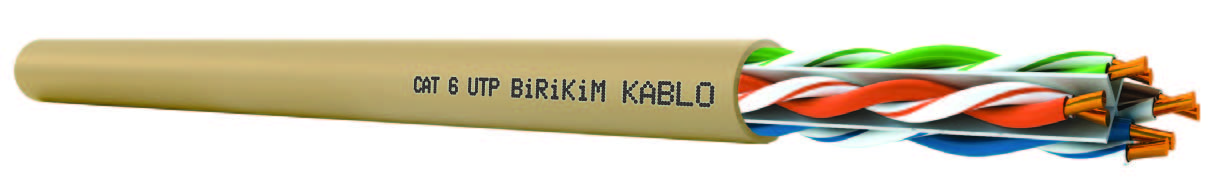

CAT 6 UTP
| Application | |||
| These cables are used in data communication and analogue systems that work up to 250 Mbit/s. Also support to ISDN, 10 Base-T Ethernet, 100 Base-T Ethernet, 1000 Base-T Ethernet, TP-PMD/TP-DDI, ATM SYSTEMS. | |||
| Construction | |||
| Conductor | Bare copper wire AWG24/23 | ||
| Insulation | PE | EN 50290-2-23, VDE0207 | ||
| Colour Code | EIA/TIA568.B2 | ||
| Lay up | Two cores twisted in pair and pairs stranded together with star shaped separator | ||
| Outer sheath | 6,20 mm PVC | EN 50290-2-22 (TM52), VDE0207(YM2) | ||
| Outer Sheath Colour | RAL 7032 Grey | ||
| Specifications | |||
| Impedance | 100±15 Ω | ||
| Mutual Capacitance | 48 pF/m | ||
| Temperature Range | -30°C – +70°C / (fixed) | ||
| Min. Bending Radius | 7,5 x cable diameter | ||
| Cable Weight | 44 (kg/km) 24awg 49 (kg/km) 23awg |
||
| Standard Packing | 305 m Carton Box | ||
| 305 m Plywood Spool | |||
| 500 m Plywood Spool | |||
| Loop Resistance | 180 Ω/km(max.) 145 Ω/km(max.) 24awg |
||
| Insulation Resistance | >2000MΩ.km | ||
| Operating Voltage | 250 V | ||
| Test Voltage | 1,2 kV | ||
| Electrical Properties | |||
| Frequency | Attenuation | NEXT | Return Loss |
| (MHz) | (dB/100m) Max. | (dB/100m) Min. | (dB/100m) Min. |
| 1 | 2 | 74,3 | 20 |
| 4 | 3,6 | 65,3 | 23,5 |
| 10 | 6 | 59,3 | 25 |
| 16 | 7,4 | 56 | 25 |
| 20 | 8,4 | 55 | 25 |
| 25 | 9,5 | 53,3 | 24,3 |
| 31,25 | 10,7 | 51,9 | 23,6 |
| 62,5 | 15,4 | 47,4 | 21,5 |
| 100 | 19,8 | 44,3 | 20,1 |
| 155 | 25 | 42 | 18,8 |
| 200 | 29 | 40 | 18 |
| 250 | 32,8 | 38,3 | 17,3 |
