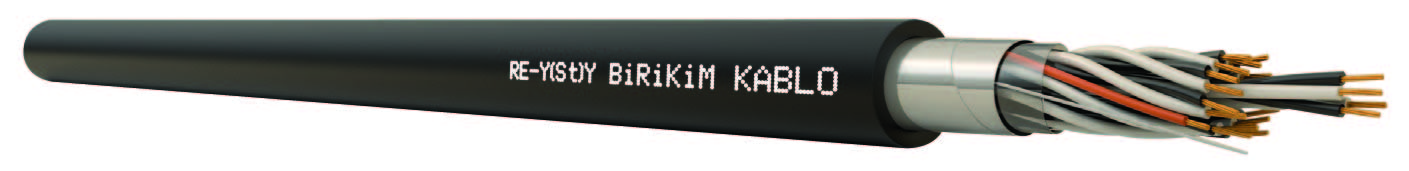

RE-Y(St)Y-fl
| Application | ||||
|
Instrumentation cables are preferred in the industrial applications of petrochemical plants, power plants, steel & aluminium factories, water treatment plants, pipelines and industrial buildings of the oil and gas industry and similar projects where measurement and control of data is crucial and the project environment can be demanding. Birikim Kablo follows national/international standards or customers specific requests when designing these cables. |
||||
| Construction | ||||
| Reference Standard | EN 50288-7 | |||
| Conductor | IEC 60228, CLASS-2 Stranded electrolytic annealed copper wire | |||
| Insulation | PVC | EN 50290-2-21 (TI52), VDE0207(YI2) | |||
| Colour Code | Pair : White-black cores with numbers Triple : White-black-red cores with numbers |
|||
| Lay up | Two cores twisted in pair and pairs stranded together | |||
| Screen | Polyester tape, Aluminium foil 100% coverage | |||
| Drain wire | Stranded Tinned Copper | |||
| Outer sheath | Flame Retardant, UV Resistant PVC | EN 50290-2-22 | |||
| Outer Sheath Colour | RAL 5015 Blue , RAL 9005 Black | |||
| Specifications | ||||
| Mutual Capacitance (800 MHz) | 250(pF/m) | |||
| Capacitance Unbalance | 500 pF/ 500 m | |||
| Insulation Resistance | >100MΩ.km | |||
| Conductor Resistance | ||||
| Cross Section (mm2) | Conductor resistance Ω/km (max.) | L/R Ratio(µH/Ω) | ||
| 0,5 | 36 | 25 | ||
| 0,75 | 24,5 | 25 | ||
| 1 | 18,1 | 25 | ||
| 1,3 | 14,2 | 40 | ||
| 1,5 | 12,1 | 40 | ||
| 2,5 | 7,41 | 60 | ||
| Operating Voltage | 300/500 V | |||
| Test Voltage | 2000 V | |||
| Temperature Range | -30°C – +70°C (fixed) | |||
| Min. Bending Radius | 7,5 x cable diameter | |||
| Oil Resistance | ICEA S-82-552 | |||
| Flame tests | IEC 60332-1-2, EN 60332-1-2, VDE 0482-332-2-1 IEC 60332-3-24 , EN 60332-3-24 |
|||
| Alternative designs: | Yw – Heat resistant PVC (105 °C) PiMF, TiMF and QiMF screen types C – Copper or tinned copper braided Yv/Hv – Reinforced outer sheath RE-2G - Fire resistant (silicon based) RE-m2X - Fire resistant (mica tape based) Communication core can be added upon request |
|||
| Product Code | Number of Cores × Cross section (mm2) | Cable Diameter (mm ±5%) | Copper Weight (kg/km) | Cable Weight (kg/km) |
| 33102010502 | 1x2x0,50 | 5,6 | 15 | 44 |
| 33102010504 | 2x2x0,50 | 7,5 | 29 | 76 |
| 33102010508 | 4x2x0,50 | 8,8 | 48 | 108 |
| 33102010516 | 8x2x0,50 | 11,3 | 85 | 182 |
| 33102010520 | 10x2x0,50 | 13,1 | 104 | 225 |
| 33102010524 | 12x2x0,50 | 13,6 | 125 | 260 |
| 33102010532 | 16x2x0,50 | 15,2 | 162 | 330 |
| 33102010540 | 20x2x0,50 | 17,3 | 202 | 402 |
| 33102010548 | 24x2x0,50 | 18,8 | 240 | 490 |
| 33102010802 | 1x2x0,75 | 6 | 18 | 50 |
| 33102010804 | 2x2x0,75 | 8 | 40 | 90 |
| 33102010808 | 4x2x0,75 | 9,6 | 70 | 135 |
| 33102010816 | 8x2x0,75 | 12,6 | 125 | 236 |
| 33102010820 | 10x2x0,75 | 14,4 | 154 | 294 |
| 33102010824 | 12x2x0,75 | 15,1 | 181 | 337 |
| 33102010832 | 16x2x0,75 | 16,8 | 240 | 440 |
| 33102010840 | 20x2x0,75 | 18,2 | 300 | 535 |
| 33102010848 | 24x2x0,75 | 21 | 356 | 655 |
| 33102011002 | 1x2x1,0 | 6,4 | 24 | 64 |
| 33102011004 | 2x2x1,0 | 8,5 | 50 | 105 |
| 33102011008 | 4x2x1,0 | 10,4 | 90 | 164 |
| 33102011016 | 8x2x1,0 | 13,5 | 166 | 288 |
| 33102011020 | 10x2x1,0 | 15,7 | 205 | 360 |
| 33102011024 | 12x2x1,0 | 16,4 | 242 | 422 |
| 33102011032 | 16x2x1,0 | 18,4 | 320 | 550 |
| 33102011040 | 20x2x1,0 | 20,5 | 396 | 670 |
| 33102011048 | 24x2x1,0 | 22,2 | 470 | 810 |
| 33102011302 | 1x2x1,3 | 7,1 | 30 | 65 |
| 33102011304 | 2x2x1,3 | 9,6 | 62 | 130 |
| 33102011308 | 4x2x1,3 | 11,9 | 115 | 212 |
| 33102011316 | 8x2x1,3 | 15,4 | 210 | 370 |
| 33102011320 | 10x2x1,3 | 17,6 | 265 | 455 |
| 33102011324 | 12x2x1,3 | 18,4 | 312 | 530 |
| 33102011332 | 16x2x1,3 | 21,2 | 415 | 700 |
| 33102011340 | 20x2x1,3 | 23,3 | 514 | 850 |
| 33102011348 | 24x2x1,3 | 25,7 | 620 | 1030 |
| 33102011502 | 1x2x1,5 | 7,5 | 35 | 70 |
| 33102011504 | 2x2x1,5 | 10 | 72 | 140 |
| 33102011508 | 4x2x1,5 | 12,1 | 130 | 225 |
| 33102011516 | 8x2x1,5 | 15,6 | 244 | 400 |
| 33102011520 | 10x2x1,5 | 18,5 | 300 | 500 |
| 33102011524 | 12x2x1,5 | 19,4 | 360 | 590 |
| 33102011532 | 16x2x1,5 | 21,8 | 472 | 770 |
| 33102011540 | 20x2x1,5 | 24,4 | 585 | 960 |
| 33102011548 | 24x2x1,5 | 26,9 | 710 | 1125 |
| 33102012502 | 1x2x2,5 | 9 | 54 | 114 |
| 33102012504 | 2x2x2,5 | 12 | 110 | 204 |
| 33102012508 | 4x2x2,5 | 14,9 | 205 | 335 |
| 33102012516 | 8x2x2,5 | 19,6 | 410 | 630 |
| 33102012520 | 10x2x2,5 | 21,5 | 502 | 772 |
| 33102012524 | 12x2x2,5 | 23,4 | 606 | 905 |
| 33102012532 | 16x2x2,5 | 27,2 | 780 | 1180 |
| 33102012540 | 20x2x2,5 | 29 | 980 | 1450 |
| 33102012548 | 24x2x2,5 | 31,8 | 1.190 | 1780 |
