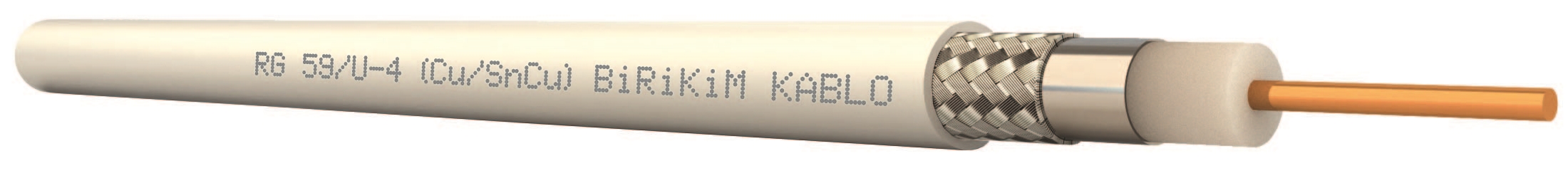

RG 59/U-4 F (Cu/SnCu)
| Application | ||||
|
They are used as connection cables in indoor at CATV, cable TV, satellite systems.. |
||||
| Construction | ||||
| Conductor | 0,81 mm Electrolytic annealed copper | |||
| Insulation | 3,60 mm Physical foamed polyethylene | |||
| Foil Screen | Aluminium foil 100% coverage | |||
| Screen | Tinned copper wire braiding | |||
| Outher sheath | 5,80 mm PVC | EN 50290-2-22 (TM52), VDE0207(YM2) | |||
| Outher Sheath Colour | RAL 9003 White | |||
| Specifications | ||||
| Impedance | 75 Ω | |||
| Mutual Capacitance | 54 pF/m | |||
| Conductor Resistance | 36 Ω/km(max.) | |||
| Insulation Resistance | >2000MΩ.km | |||
| Operating Voltage | 1,1 kV (max.) | |||
| Test Voltage | 2,5 kV | |||
| Temperature Range | -30°C – +70°C (fixed) | |||
| Min. Bending Radius | 10 x cable diameter | |||
| Cable Weight | 38 (kg/km) | |||
| Attenuations | ||||
| Frequency (MHz) | (dB/100m) | |||
| 230 | 13 | |||
| 470 | 19 | |||
| 860 | 25,5 | |||
| 1000 | 28 | |||
| 1500 | 34,5 | |||
| 2000 | 41 | |||
| 2400 | 44,5 | |||
| 3000 | 50 | |||
| Return Loss | ||||
| Frequency (MHz) | (dB/100m) | |||
| 5-470 | 20 | |||
| 470-862 | 18 | |||
| 862-1000 | 16 | |||
| Standard Packing | ||||
| Standard Packing | 100 m Roll / PVC Spool | |||
| 300 m Plywood Spool | ||||
| 500 m Plywood Spool | ||||
| 1000 m Plywood Spool | ||||
